TEXWORK

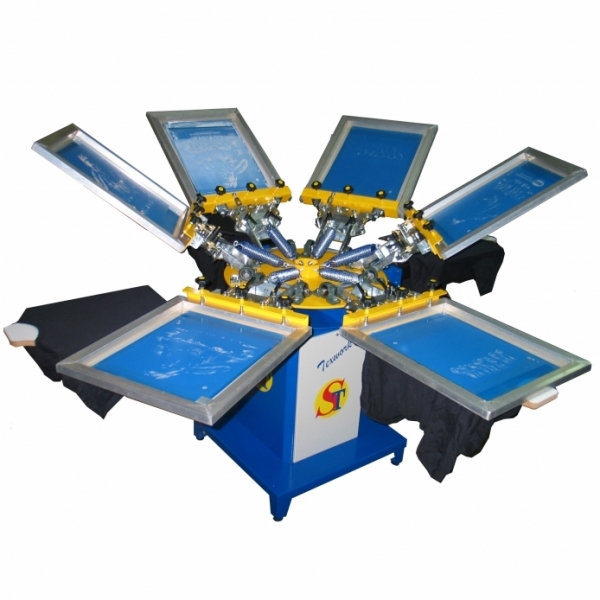

The TEXWORK is a textile printing manual carousel that can have endless configuration. The TEXWORK has the capacity to install several special pallets such as : umbrellas; sleeves; jackets; caps; vacuum pallet and others. The TEXWORK is the equipped with micro registers in each color.

  • Available in almost any configuration customer´s needs - 100% full personalized
  • Palettes and screens can rotate separately;

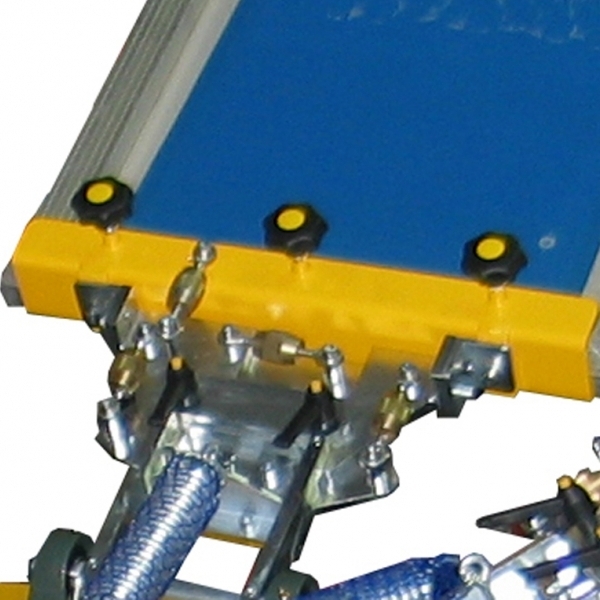

  • Individual micro register in each color;
  • Possibility to print with different screen sizes;
  • Individual adjust from screen angle;

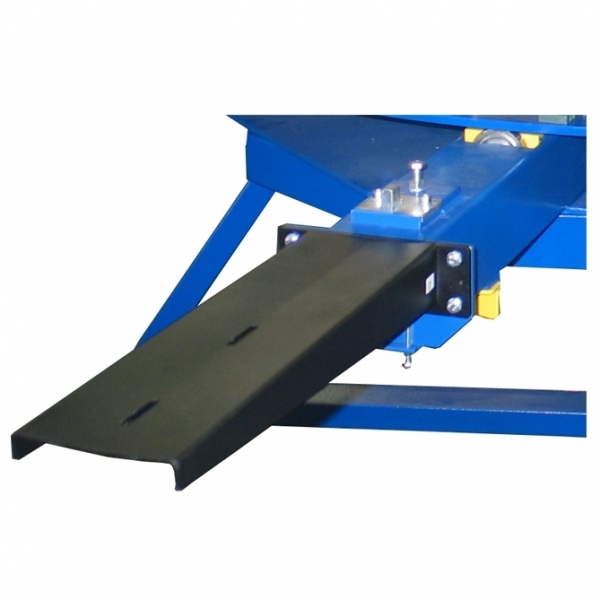

  • Possibility to adjust pallet length direction;
  • Super stable pallet arm;
  • Fast and easy assembly from screens and pallets

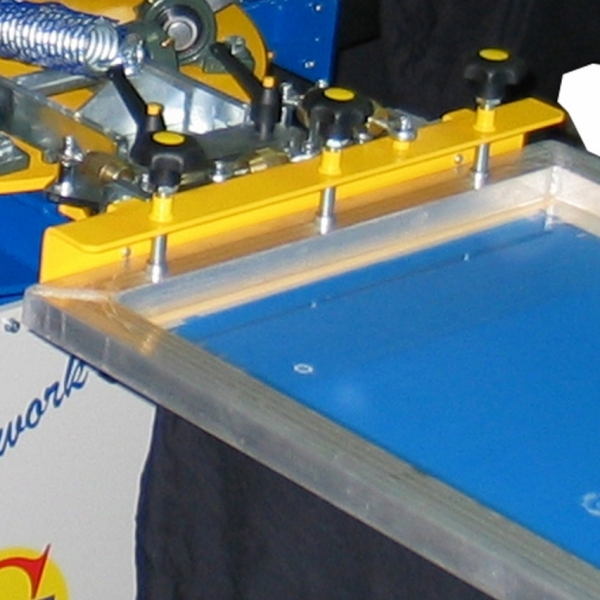

  • Screen clamps lateral as option;
  • Solid mechanics construction;
  • Available accessories to print: caps, umbrellas, jackets, transfers, sleeves, etc...

    • TEXWORKUnitsTW 6/6TW 6/4TW 6/2TW 6/1TW 4/4TW 4/2TW 4/1
    Colors quantity   6 6 6 6 4 4 4
    Pallets quantity   6 4 2 1 4 2 1
    Maximum screen size cm 46x75 46x75 46x75 46x75 46x75 46x75 46x75
    Minimum screen size when using side clamp cm 35x70 35x70 35x70 35x70 35x70 35x70 35x70
    Diameter Cm 235 235 235 235 235 235 235
    Height cm 130 130 130 130 130 130 130
    Height from working platform cm 90 90 90 90 90 90 90
    Weight Kg 290 250 210 200 210 180 160
